tna ropac 5
ultra high-performance case packer
tna ropac 5

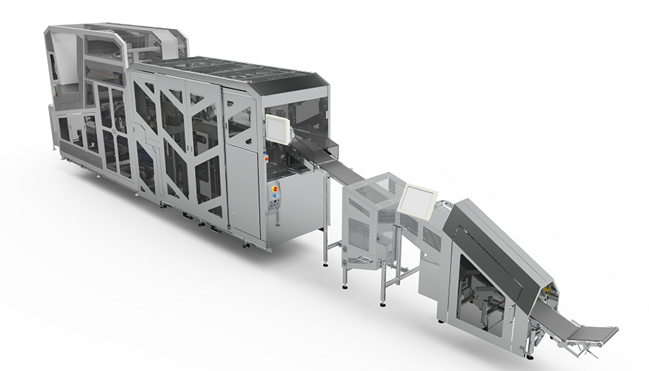

The world’s fastest case-packing system for flexible bags capable of packing up to 200 bags per minute. Using TNA’s own patented semi-rotary technology, the tna ropac 5 case packer is designed to pack small-to-medium, pillow style snack bags. Most bag widths and lengths are handled with ease for packing various applications such as snacks, confectionery, pasta and cereal.
*Subject to bag type, film and product.
standard features
- Compact design with “one machine per bagger configuration”
- 38.1cm (15inch) colour touch screen new innovative semi-rotary bag shelving
- Quick change, tool less changeovers and easy maintenance access
optional features
- Inclined check-weigher on the infeed conveyor to control accuracy of bag weights from bagger
| tna ropac 5 | |||||
|---|---|---|---|---|---|
| Model type | tna ropac 5 | ||||
| performance | max running speed bpm | 200 | |||
| Max case erecting speed cpm | 10 | ||||
| utilities | average air consumption L/min (cfm) | 400 (14.1) | |||
| controller | CXE | ||||
| power consumption kW (hp) | 1.3 (1.7) | ||||
| voltage VAC | 380-415 | ||||
| specifications | bags | bag length (packed) | minimum mm (in) | 160 (6.3) | |
| maximum mm (in) | 415 (16.3) | ||||
| bag width | minimum mm (in) | 120 (4.7) | |||
| maximum mm (in) | 320 (12.5) | ||||
| bag thickness | minimum mm (in) | 30 (1.2) | |||
| maximum mm (in) | 120 (4.7) | ||||
| bag weight | minimum g (lbs) | 35 (1.2) | |||
| maximum g (lbs) | 300 (10.6) | ||||
| cases length | minimum mm (in) | 292 (11.5) * | |||
| maximum mm (in) | 600 (23.6) | ||||
| cases | cases width | minimum mm (in) | 200 (7.9) ** | ||
| maximum mm (in) | 400 (15.7) | ||||
| cases height | minimum mm (in) | 160 (6.3) | |||
| maximum mm (in) | 400 (15.7) | ||||
| construction material | stainless steel (frame), lexan, brush stainless steel (guarding), mild steel with zinc chromate (inside components) , anodized aluminium. | ||||
| main cubicle | dimensions | length mm (in) | 7780 (306) | ||
| width mm (in) | 1222 (48) | ||||
| height mm (in) | 2500 (98) | ||||
| weight kg (lbs) | 3900 (8600) | ||||
| * case loaded in landscape orientation (major panel facing). Otherwise 300 (11.8). ** case loaded in landscape orientation (major panel facing). Otherwise 292 (11.5). |
|||||
